Carbon Steel Flanges

Carbon Steel Flanges, ASTM A105 CS Flanges, Carbon Steel Flange, Carbon Steel Flanges Manufacturers In India, Carbon Steel A105 Flat Flanges Suppliers in Mumbai, Carbon Steel Pipe Flanges, Carbon Steel Flange Manufacturer, Carbon Steel Flanges Manufacturers, Carbon Steel Flange Factory, Buy Carbon Steel Industrial Flanges, Carbon Steel A105 Forged Flanges Exporters, ASME SA105 Carbon Steel Plate Flanges Manufactures in India, Carbon Steel Industrial Flanges Suppliers and Exporters.

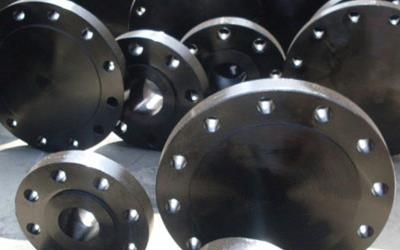

Carbon Steel ASTM A105 ANSI B16.5, B16.47 Blind Flanges

Carbon Steel Blind Flanges

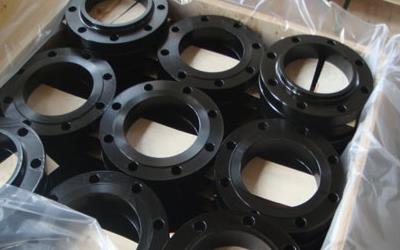

Carbon Steel ASTM A105 ANSI B16.5, B16.47 Slip On Flanges

Carbon Steel Slip On Flanges

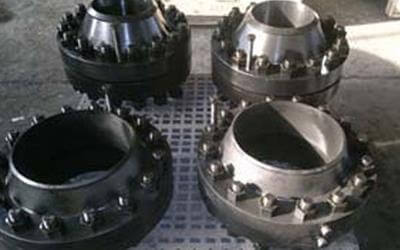

Carbon Steel ASTM A1105 ANSI B16.5, B16.47 Orifice Flanges

Carbon Steel Orifice Flanges

ASME B16.5 Carbon Steel Weld Neck Flanges (WNRF), Carbon Steel Ring Type Joint Flanges (RTJ), ANSI B16.47 Carbon Steel Blind Flanges (BLRF), Carbon Steel Flange Manufacturers, ASTM A105 CS Socket Weld Flanges (SWRF) Distributors, Carbon Steel Flange Supplier, Carbon Steel A105 Slip On Flanges (SORF) Traders, B16.48 Carbon Steel Spectacle Flanges Dealers in Mumbai India.

iSteel is known to manufacture, supply, trade, and export quality Carbon Steel products in the industry. We offer a broad range of customizable Carbon Steel and Other Alloy products. Carbon Steel is relatively cheaper alloy product. It is malleable, as well as ductile and offers relatively less tensile strength. Certain Carbon steels can successfully undergo heat treatment. The lower price finds it usable in a wide range of industries such as Automotive Fertilizers, Construction, etc. We offer these Carbon Steel Flanges in different types such as Carbon Steel Weld Neck Flanges, Carbon Steel Blind Flanges, Carbon Steel Orifice Flanges, Carbon Steel Socket Weld Flangesand Carbon Steel Ring Type Joints. Our Carbon Steel products are widely popular because of their Dimensional Accuracy, Superior Performance and more all at reasonable prices. We have always focused on giving the best services and products to our customers. All our products undergo international standards of quality and durability checks to ensure their durability in different working conditions.

One such type of flange that is typically composed of carbon steel is the carbon steel flange. This substance offers qualities including corrosion resistance, outstanding durability, and finishing in products. They come in a variety of forms. For instance, the pipe is terminated with carbon steel blind flanges.

A pipeline system is created by joining pipes, valves, pumps, and other pieces of machinery using carbon steel flanges. Additionally, it offers simple access for maintenance, review, or adjustment. Flanges are often screwed or welded. A gasket is placed in between the two flanges before being bolted together to create a flanged connection.

A105 CS Long Weld Neck Flanges Traders in Mumbai, Carbon Steel Flange Material Specification, Carbon Steel Nipo Flanges Stockholders, Carbon Steel Reducing Flanges, Carbon Steel Forged Flanges, Carbon Steel Threaded / Screwed Flanges, Carbon Steel Flange Suppliers, A105 Carbon Steel Orifice Flanges, Wholesale Carbon Steel Flange, Carbon Steel Flange Factories, Carbon Steel Flanges Suppliers, Stockists of Carbon Steel Grade ASME, ANSI, EN, DIN, AFNOR, AWWA, GOST, BS, JIS, CS, MSS, SA, UNI Standard Flanges in India.

Carbon Steel Flanges Specification
Specifications ASTM A105, SA 105 / A350 LF2 / ASTM A694, SA694
Standards ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size Range 1/2"NB TO 48 "NB
Pressure Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND 6,10, 16, 25, 40
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Carbon Steel Flange Physical Composition

Density (lb / cu. in.) 0.284
Specific Gravity 7.9
Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) 0.107
Melting Point (Deg F) 2740
Thermal Conductivity 360
Mean Coeff Thermal Expansion 6.7
Modulus of Elasticity Tension 30
Modulus of Elasticity Torsion 11

Carbon Steel Flange Weight

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 PN14 95 67 4 M12 14
AS 2129 Flanges Table C 95 67 4 13 14
Table D 95 67 4 13 14
Table E 95 67 4 13 14
Table F 95 67 4 13 14
Table H 114 83 4 16 17
Table J 114 83 4 16 17
ANSI B16.5 ANSI 150 89 60 4 13 16
ANSI 300 95 67 4 13 16
ANSI 600 95 67 4 13 16
ANSI 900 121 83 4 19 22
ANSI 1500 121 83 4 19 22
ISO 7005 (DIN) Flanges PN6 80 55 4 M10 11
PN10 95 65 4 M12 14
PN16 95 65 4 M12 14
PN20 90 60.5 4 M14 16
PN25 95 65 4 M12 14
PN40 95 65 4 M12 14

ASTM A105 Flange Pressure Ratings

Temperature (F°) 150# 300# 400# 600# 900# 1500# 2500#
< 100 285 740 985 1480 2220 3705 6170
200 260 680 905 1360 2035 3395 5655
300 230 655 870 1310 1965 3270 5450
400 200 635 845 1265 1900 3170 5280
500 170 605 805 1205 1810 3015 5025
600 140 570 755 1135 1705 2840 4730
650 125 550 730 1100 1650 2745 4575
700 110 530 710 1060 1590 2655 4425
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 230 305 460 690 1150 1915
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715
Hydrostatic Test Pressure (psig) 450 1125 1500 2225 3350 5575 9275

Carbon Steel Flanges Price List

Description Size Aprox. Wt/Unit FOB
INR
CIF
INR
FOB
USD
CIF
USD
FOB
STGP
CIF
STGP
FOB
EURO$
CIF
EURO$
SORF FLANGES ASTM A105 B16.5 150# Price 15mm 0.49 90.05 97.88 1.364 1.483 0.919 0.999 1.637 1.780
SORF FLANGES ASTM A105 B16.5 150# Price 20mm 0.61 108.68 118.13 1.647 1.790 1.109 1.205 1.976 2.148
SORF FLANGES ASTM A105 B16.5 150# Price 25mm 0.90 122.65 133.31 1.858 2.020 1.252 1.360 2.230 2.424
SORF FLANGES ASTM A105 B16.5 150# Price 32mm 1.13 178.54 194.06 2.705 2.940 1.822 1.980 3.246 3.528
SORF FLANGES ASTM A105 B16.5 150# Price 40mm 1.48 189.41 205.88 2.870 3.119 1.933 2.101 3.444 3.743
SORF FLANGES ASTM A105 B16.5 150# Price 50mm 2.37 248.40 270.00 3.764 4.091 2.535 2.755 4.516 4.909
SORF FLANGES ASTM A105 B16.5 150# Price 65mm 3.60 457.99 497.81 6.939 7.543 4.673 5.080 8.327 9.051
SORF FLANGES ASTM A105 B16.5 150# Price 80MM 4.10 481.28 523.13 7.292 7.926 4.911 5.338 8.750 9.511
SORF FLANGES ASTM A105 B16.5 150# Price 100mm 6.04 659.81 717.19 9.997 10.866 6.733 7.318 11.997 13.040
SORF FLANGES ASTM A105 B16.5 150# Price 125mm 6.53 884.93 961.88 13.408 14.574 9.030 9.815 16.090 17.489
SORF FLANGES ASTM A105 B16.5 150# Price 150mm 7.78 1161.27 1262.25 17.595 19.125 11.850 12.880 21.114 22.950
SORF FLANGES ASTM A105 B16.5 150# Price 200mm 12.98 1637.89 1780.31 24.816 26.974 16.713 18.166 29.780 32.369
SORF FLANGES ASTM A105 B16.5 150# Price 250mm 17.96 2716.88 2953.13 41.165 44.744 27.723 30.134 49.398 53.693
SORF FLANGES ASTM A105 B16.5 150# Price 300mm 29.06 3958.88 4303.13 59.983 65.199 40.397 43.909 71.980 78.239
SORF FLANGES ASTM A105 B16.5 150# Price 350mm 36.96 6210.00 6750.00 94.091 102.273 63.367 68.878 112.909 122.727
SORF FLANGES ASTM A105 B16.5 150# Price 400mm 47.28 8694.00 9450.00 131.727 143.182 88.714 96.429 158.073 171.818
SORF FLANGES ASTM A105 B16.5 150# Price 450mm 52.20 9315.00 10125.00 141.136 153.409 95.051 103.316 169.364 184.091
SORF FLANGES ASTM A105 B16.5 150# Price 500mm 68.78 12420.00 13500.00 188.182 204.545 126.735 137.755 225.818 245.455
SORF FLANGES ASTM A105 B16.5 150# Price 600mm 95.03 18630.00 20250.00 282.273 306.818 190.102 206.633 338.727 368.182

Other Types of ASTM A105 Carbon Steel Flanges

We are Suppliers, Exporters, Stockists, Dealers, Traders, Distributors and Manufacturer of high yield Carbon Steel Flanges in India, Carbon Steel A105 ASME B16.5 Flanges, Carbon Steel A105 Flangeolet, Wholesale Carbon Flange, Carbon Steel Flanges Manufacturer, ASME SA105 Grade Carbon Steel Flanges with Pressure Class 150# / 300# / 400# / 600# / 900# / 1500# and 2500#, Carbon Steel A105 Spades Ring Spacers Flanges, A105 Square Flanges, Carbon Steel A105 Loose Flanges, Carbon Steel Flanges Factory, Carbon Steel A105 High Hub Blinds Flanges Stockholders in Mumbai, Wholesale Carbon Steel Flanges, ASTM A105 Carbon Steel Industrial Flanges, A105 Carbon Steel Raised Face Flanges, Carbon Steel Flange Price List, CS A105 Tongue and Groove Flanges, Carbon Steel Flange Dimensions, Carbon Steel A105 RTJ Flanges, Carbon Steel A105 Flat Face Flanges, Carbon Steel A105 ANSI B16.47 Large Diameter Flanges.

Preview Product Matrials Other Types
Carbon Steel A105 Socket Weld Flanges Socket Weld Flange Carbon Steel Carbon Steel Socket weld Flanges, A105 Carbon Steel SWRF Flange
Carbon Steel A105 Threaded Flanges Threaded Flange / Screwed Flanges Carbon Steel Carbon Steel Threaded Flanges, A105 Carbon Steel Screwed Flange
Carbon Steel A105 Slip-On Flanges Slip On Flange Carbon Steel Carbon Steel Slip On Flanges, ASTM A105 Carbon Steel SORF Flange, CS Slip On Raised Face Flanges, Carbon Steel Slip On Pipe Flanges
Carbon Steel A105 Blind Flanges Blind Flange Carbon Steel Carbon Steel Blind Flanges, Carbon Steel A105 BLRF Flange, ASTM A105 CS Blind Raised Face Flanges.
Carbon Steel A105 Square Flanges Square Flange Carbon Steel Carbon Steel Square Flanges, ASTM A105 CS Square Flanges
Carbon Steel A105 Weld Neck Flanges Weld Neck Flange Carbon Steel Carbon Steel Weld Neck Flanges, ASTM A105 Carbon Steel WNRF Flange, CS Weld Neck Raised Face Flanges
Carbon Steel A105 Lap Joint Flanges Lap Joint Flange Carbon Steel Carbon Steel Lap Joint Flanges, CS A105 Lap Joint Flanges
Carbon Steel A105 Forged Flanges Forged Flange Carbon Steel Carbon Steel Forged Flanges, ASTM A105 Carbon Steel Forged Pipe Flanges
Carbon Steel A105 Reducing Flanges Reducing Flange Carbon Steel Carbon Steel Reducing Flanges, ASTM A105 CS Reducing Flanges
Carbon Steel A105 Orifice Flanges Orifice Flange Carbon Steel Carbon Steel Orifice Flanges, Carbon Steel ASTM A105 Orifice Plate Flanges
Carbon Steel A105 Spectacle Blind Flanges Spectacle Blind Flange Carbon Steel Carbon Steel Spectacle Blind Flanges, ASTM A105 CS Spectacle Blind Flange
Carbon Steel A105 High Hub Blind Flanges High Hub Blind Flange Carbon Steel Carbon Steel High Hub Blind Flanges, CS A105 High Hub Blind Flange
Carbon Steel A105 Plate Flanges Plate Flange Carbon Steel Carbon Steel Plate Flanges, ASTM A105 CS Plate Flange
Carbon Steel A105 Expander Flanges Expander Flange Carbon Steel Carbon Steel Expander Flanges, CS A105 Expander Flange
Carbon Steel A105 Nipo Flanges Nipo Flange, Weldo Flange Carbon Steel Carbon Steel Nipo Flanges, ASTM A105 CS Weldo Flanges
Carbon Steel A105 Pipe Flanges Pipe Flange Carbon Steel Carbon Steel Pipe Flanges, ASTM A105 CS Pipe Flanges
